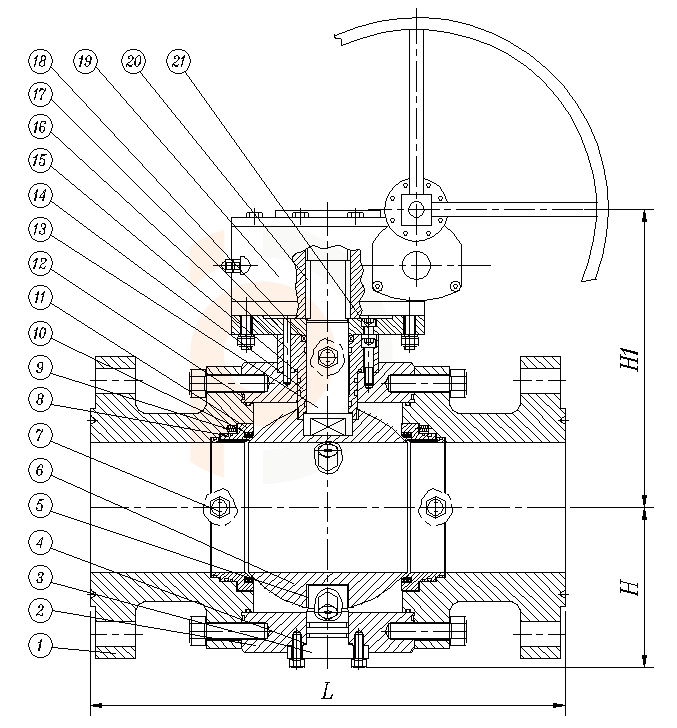

序号 |
名称 |
序号 |
名称 |
|
1 |
阀盖 |
13 |
阀杆 |
|
2 |
阀体 |
14 |
填料箱 |
|
3 |
下盖 |
15 |
密封垫 |
|
4 |
密封垫 |
16 |
销子 |
|
5 |
滑动轴承 |
17 |
连接盘 |
|
6 |
球体 |
18 |
填料 |
|
7 |
注脂阀 |
19 |
涡轮箱 |
|
8 |
O-型圈 |
20 |
键 |
|
9 |
弹簧 |
21 |
内六角 |
|
10 |
阀座支撑圈 |
22 |
|
|
11 |
阀座 |
23 |
|
|
12 |
密封垫 |
24 |
|
|
技 术 要 求 |
|||
|
设计与制造标准 |
API 6d |
||
|
结构长度标准 |
ASME B16.10 |
||
|
法兰连接端标准 |
ASME B16.5/B16.47-A |
||
|
检验与试验标准 |
API 6d |
||
Dimensions data:
|
SIZE |
CLASS 150 |
CLASS 300 |
CLASS 600 |
CLASS 900 |
CLASS 1500 |
CLASS 2500 |
||||||||||||
|
NPS |
L |
H |
H1 |
L |
H |
H1 |
L |
H |
H1 |
L |
H |
H1 |
L |
H |
H1 |
L |
H |
H1 |
|
2 |
178 |
138 |
180 |
216 |
130 |
180 |
292 |
130 |
172 |
368 |
136 |
193 |
368 |
150 |
193 |
451 |
121 |
230 |
|
3 |
203 |
150 |
190 |
283 |
150 |
190 |
356 |
150 |
205 |
381 |
158 |
302 |
470 |
168 |
270 |
578 |
146 |
287 |
|
4 |
229 |
170 |
212 |
305 |
170 |
212 |
432 |
170 |
274 |
457 |
180 |
320 |
546 |
176 |
275 |
673 |
164 |
331 |
|
6 |
394 |
183 |
277 |
403 |
180 |
277 |
559 |
183 |
283 |
610 |
187 |
320 |
705 |
203 |
325 |
914 |
220 |
394 |
|
8 |
457 |
216 |
301 |
502 |
217 |
308 |
660 |
223 |
342 |
737 |
226 |
365 |
832 |
248 |
486 |
1022 |
312 |
488 |
|
10 |
533 |
260 |
359 |
568 |
265 |
381 |
787 |
270 |
393 |
838 |
280 |
495 |
991 |
297 |
535 |
1270 |
425 |
600 |
|
12 |
610 |
287 |
419 |
648 |
307 |
429 |
838 |
310 |
522 |
965 |
329 |
600 |
1130 |
357 |
610 |
1422 |
629 |
872 |
|
14 |
686 |
338 |
460 |
762 |
338 |
460 |
889 |
340 |
551 |
1029 |
390 |
625 |
1257 |
383 |
664 |
|
|
|
|
16 |
762 |
375 |
494 |
838 |
375 |
581 |
991 |
378 |
637 |
1130 |
407 |
675 |
1384 |
435 |
700 |
|
|
|
|
18 |
864 |
402 |
521 |
914 |
414 |
674 |
1092 |
418 |
683 |
1219 |
526 |
715 |
1537 |
507 |
763 |
|
|
|
|
20 |
914 |
427 |
656 |
911 |
450 |
713 |
1194 |
451 |
719 |
1321 |
600 |
750 |
1664 |
586 |
856 |
|
|
|
|
24 |
1067 |
518 |
795 |
1143 |
531 |
850 |
1397 |
539 |
823 |
1549 |
700 |
800 |
1816 |
632 |
925 |
|
|
|
|
26 |
1143 |
535 |
870 |
1245 |
543 |
905 |
1448 |
548 |
893 |
1658 |
718 |
917 |
2045 |
675 |
1111 |
|
|
|
|
28 |
1245 |
542 |
935 |
1346 |
556 |
958 |
1549 |
565 |
950 |
1753 |
742 |
986 |
|
|
|
|
|
|
|
30 |
1295 |
605 |
1010 |
1397 |
620 |
1035 |
1651 |
620 |
1035 |
1880 |
770 |
1066 |
|
|
|
|
|
|
|
32 |
1372 |
650 |
1060 |
1524 |
666 |
1087 |
1778 |
666 |
1087 |
2032 |
810 |
1120 |
|
|
|
|
|
|
|
34 |
1473 |
650 |
1077 |
1626 |
681 |
1104 |
1930 |
682 |
1104 |
2159 |
860 |
1137 |
|
|
|
|
|
|
|
36 |
1524 |
700 |
1115 |
1727 |
718 |
1143 |
2083 |
718 |
1143 |
2286 |
739 |
1177 |
|
|
|
|
|
|
|
40 |
1727 |
865 |
1400 |
1930 |
887 |
1435 |
2337 |
887 |
1435 |
|
|
|
|
|
|
|
|
|
The above data is for reference only, subject to actual product
